KRO
KRO
Convenient and safe cold and hot water purifier. A system of cold and hot water with abundant continuous. Stand or half style
특징
- 01용량변경이 가능하다 (membrane 1개~6개)
- 02유지보수가 간편하다. (체결방식의 간편성, 멤브레인 슬라이드 장착)
- 03응용성 (추가기능, 연수장치 또는 Anti Scale unit, UV)
- 04컴팩트한 디자인과 간편성 (탈부착이 편리하며, 컴팩트한 외관 및 내부, 1Touch 방식)
- 05경제성 (35%의 기본 회수율 부터~75% 회수율 까지)
- 06제품의 경쟁력 (정형화에 따른 제작으로 가격의 경쟁력이 높다.)

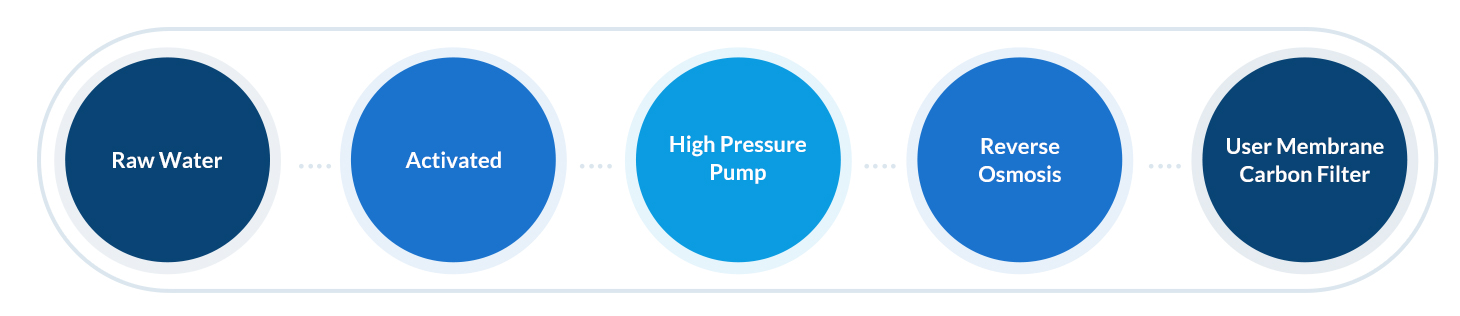

공정도
 |
주요장치 개요
 |  |  |
| Activated Carbon Filter | Micro Filter | RO Membrane |
| A pretreatment device that removes trace amounts of organic matter and odor-causing substances contained in raw water | Preprocessing device which reduces Membrane overload by removing Particles more than 5㎛ | Provides pure water by removing ionized substances which are included in the raw water by osmosis method. |
계측장치 개요
 |  |  |
| Pressure Gauge | Flow Indicator | Conductivity Meter |
Type : Panel Mounted Size : Ø100 Material : STS304 | Type : Float: Material : PVC Body | Model : CCT3300 Range : 0.1~19.99㎲/cm |
제품 모델 사양
| Model name | K-200 | K-400 | K-600 | K-800 | K-1000 | K-1200 |
| Size | 600W× 1150D× 1600H | |||||
| Voltage type | 220V 60Hz | |||||
| Power consumption | 1.1KW | 2.2KW | ||||
| Capacity | 200ℓ/hr | 400ℓ/hr | 600ℓ/hr | 800ℓ/hr | 1000ℓ/hr | 1200ℓ/hr |
| Components (common) | Electric valve, Flow Indicator, Low Pressure Switch, Conductivity Sensor, Micro Filter 1set, Carbon Cartridge Filter 1set, RO Membrane, High Pressure Pump, RO Vessel, Control Panel, Pressure Gauge, Operation Valve | |||||
| Component (variable) | RO Vessel, RO Membrane High Pressure Pump, Piping Size | |||||
| Option | Recycle Line, UV, Antiscale Unit | |||||
기술영상
| KRO Introduction of technical video |
이미지 렌더링
 |  |
