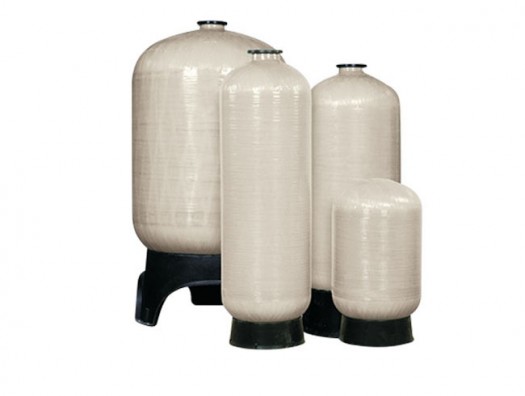

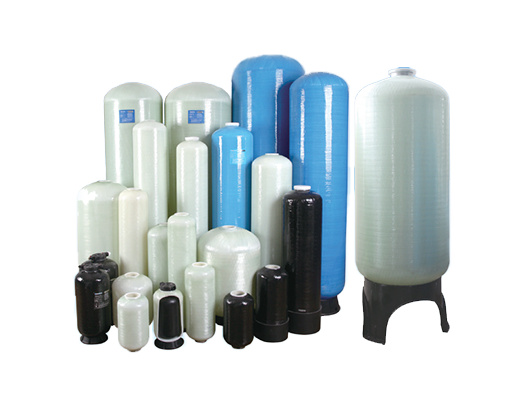

Canature pressure tanks are well-desiged and only use high quality raw material. Light weight, corrosion resistant, good toughness and chemical stability. Water contact material is non-toxic and odorless, absolutely safe to use. World-class automatic equipment and consistent quality control system ensure the pressure tanks you receive with nice appearance and durable in use

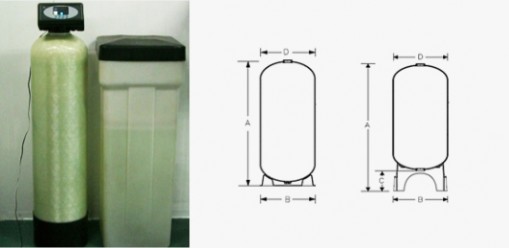

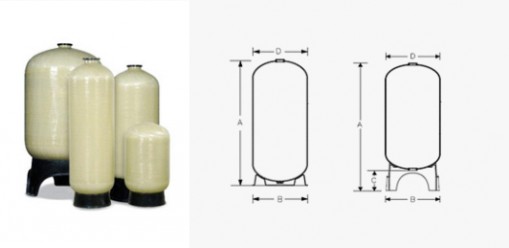

SIZE | VOLUMN | WEIGHT(Kg) | TOP OPENING | BOTTOM OPENING | BASE | DIMENSIONS(mm) | DOWNLOAD | ||||
LITER | Cu.ft. | EMPTY | A | B | C | D | |||||
6x13 | 4.3 | 0.15 | 1.25 | 2.5"-8NPSM | Standard | 332 | 167 | 155 | |||
7x13 | 5.8 | 0.2 | 1.4 | 2.5″-8NPSM | Standard | 334 | 167 | 155 | |||
7×17 | 8.3 | 0.29 | 1.95 | 2.5″-8NPSM | Standard | 430 | 167 | 155 | |||
7×35 | 19.1 | 0.67 | 3.4 | 2.5″-8NPSM | Standard | 898 | 167 | 155 | |||
7×44 | 24.3 | 0.86 | 4.05 | 2.5″-8NPSM | Standard | 1129 | 167 | 155 | |||
8×13 | 7.7 | 0.27 | 1.65 | 2.5″-8NPSM | Standard | 335 | 214 | 207 | |||
8×17 | 11 | 0.39 | 2 | 2.5″-8NPSM | Standard | 432 | 214 | 207 | |||
8×18 | 11.5 | 0.41 | 2.4 | 2.5″-8NPSM | Standard | 459 | 214 | 207 | |||
8×24 | 16.6 | 0.59 | 2.88 | 2.5″-8NPSM | Standard | 612 | 214 | 207 | |||
8×35 | 24.8 | 0.88 | 4.15 | 2.5″-8NPSM | Standard | 898 | 214 | 207 | |||
8×44 | 32.1 | 1.13 | 4.8 | 2.5″-8NPSM | Standard | 1132 | 214 | 207 | |||
9×17 | 13.7 | 0.48 | 2.25 | 2.5″-8NPSM | Standard | 431 | 243 | 233 | |||
9×35 | 31.6 | 1.12 | 4.2 | 2.5″-8NPSM | Standard | 896 | 243 | 233 | |||
9×48 | 44.6 | 1.58 | 6.05 | 2.5″-8NPSM | Standard | 44.6 | 243 | 233 | |||
10×17 | 16.8 | 0.59 | 3 | 2.5″-8NPSM | Standard | 436 | 264 | 258 | |||
10×35 | 38.4 | 1.36 | 5.1 | 2.5″-8NPSM | Standard | 897 | 264 | 258 | |||
10×44 | 50.1 | 1.77 | 6.55 | 2.5″-8NPSM | Standard | 1126 | 264 | 258 | |||
10×54 | 62.4 | 2.2 | 7.9 | 2.5″-8NPSM | Standard | 1386 | 264 | 258 | |||
12×48 | 79.5 | 2.81 | 8.4 | 2.5″-8NPSM | Standard | 1232 | 264 | 258 | |||
12×52 | 87.3 | 3.08 | 8.95 | 2.5″-8NPSM | Standard | 1338 | 311 | 310 | |||
13×54 | 105.7 | 3.73 | 10.8 | 2.5″-8NPSM | Standard | 1398 | 338 | 336 |

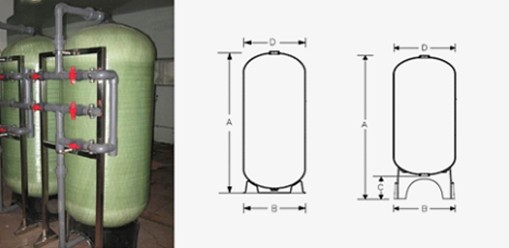

SIZE | VOLUMN | WEIGHT(Kg) | TOP OPENING | BOTTOM OPENING | BASE | DIMENSIONS(mm) | ||||
LITER | Cu.ft. | EMPTY | A | B | C | D | ||||
14×65 | 148 | 5.23 | 14.8 | 2.5"-8NPSM | Standard | 1674 | 365 | 363 | ||
4″-8UN | Standard | |||||||||
16×65 | 194 | 6.86 | 18.65 | 2.5″-8NPSM | Standard | 1671 | 416 | 413 | ||
4″-8UN | Standard | |||||||||
18×65 | 257 | 9.08 | 35.9 | 4″-8UN | Standard | 1722 | 458 | 486 | ||
37.55 | 4″-8UN | 4″-8UN | Triped | 2027 | 487 | 347 | 486 | |||
261 | 9.22 | 40 | 6″-FLG | Standard | 1776 | 458 | 485 | |||
6″-FLG | ||||||||||
6″-FLG | 6″-FLG | Triped | 2079 | 487 | 292 | 486 | ||||
21×62 | 330 | 11.66 | 41.1 | 4″-8UN | Standard | 1721 | 522 | 550 | ||
48.55 | 4″-8UN | 4″-8UN | Triped | 2064 | 550 | 394 | 550 | |||
47 | 6″-FLG | Standard | 1783 | 522 | 549 | |||||
55.6 | 6″-FLG | 6″-FLG | Triped | 2128 | 550 | 339 | 549 | |||
24×72 | 473 | 16.71 | 51.9 | 4″-8UN | Standard | 1915 | 600 | 626 | ||
55 | 4″-8UN | 4″-8UN | Triped | 2168 | 618 | 300 | 626 | |||
491 | 17.35 | 56.5 | 6″-FLG | Standard | 1977 | 600 | 624 | |||
64.6 | 6″-FLG | 6″-FLG | Triped | 2226 | 618 | 245 | 624 |
SIZE | VOLUMN | WEIGHT(Kg) | TOP OPENING | BOTTOM OPENING | BASE | DIMENSIONS(mm) | ||||
LITER | Cu.ft. | EMPTY | A | B | C | D | ||||
30×72 | 697 | 24.63 | 85.7 | 4″-8UN | Standard | 1836 | 775 | 780 | ||
90.25 | 4″-8UN | 4″-8UN | Triped | 2139 | 770 | 335 | 780 | |||
674 | 23.82 | 89.6 | 6″-FLG | Standard | 1895 | 775 | 779 | |||
100.1 | 6″-FLG | 6″-FLG | vTriped | 2199 | 770 | 280 | 779 | |||
36×72 | 1011 | 35.72 | 115.5 | 4″-8UN | Standard | 1856 | 930 | 938 | ||
123 | 4″-8UN | 4″-8UN | vTriped | 2147 | 932 | 342 | 938 | |||
970 | 34.28 | 117 | 6″-FLG | Standard | 1919 | 930 | 931 | |||
132.6 | 6″-FLG | 6″-FLG | Triped | 2217 | 932 | 287 | 931 | |||
42×72 | 1308 | 46.2 | 170 | 6″-FLG | 6″-FLG | Triped | 2224 | 1038 | 288 | 1074 |
48×72 | 1675 | 59.17 | 210 | 6″-FLG | 6″-FLG | Triped | 2225 | 1172 | 295 | 1227 |

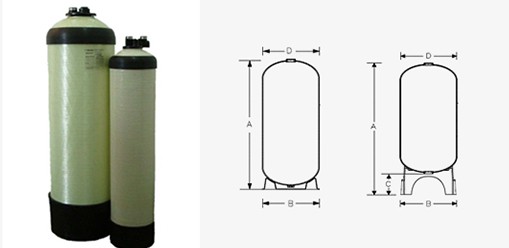

SIZE | VOLUMN | WEIGHT(Kg) | TOP OPENING | BOTTOM OPENING | BASE | DIMENSIONS(mm) | ||||
LITER | Cu.ft. | EMPTY | A | B | C | D | ||||
8×13 | 7.7 | 0.27 | 3.5 | 2.5″-8NPSM | RUBBER | 335 | 225 | 209 | ||
8×35 | 24.8 | 0.88 | 6.6 | 2.5″-8NPSM | RUBBER | 898 | 225 | 209 | ||
9×17 | 13.7 | 0.48 | 4.45 | 2.5″-8NPSM | RUBBER | 431 | 251 | 235 | ||
9×40 | 36.3 | 1.28 | 7.66 | 2.5″-8NPSM | RUBBER | 1018 | 251 | 235 | ||
10×17 | 16.8 | 0.59 | 5.48 | 2.5″-8NPSM | RUBBER | 436 | 276 | 258 | ||
10×40 | 44.9 | 1.59 | 8.34 | 2.5″-8NPSM | RUBBER | 1020 | 276 | 258 | ||
12×48 | 89 | 3.14 | 16.18 | 4.5″-8 BUTT-2B | RUBBER | 1240 | 330 | 310 | ||
12×52 | 97 | 3.43 | 16.88 | 4.5″-8 BUTT-2B | RUBBER | 1360 | 330 | 310 | ||
14X47 | 103 | 3.64 | 18 | 4.5″-8 BUTT-2B | RUBBER | 1198 | 382 | 363 |

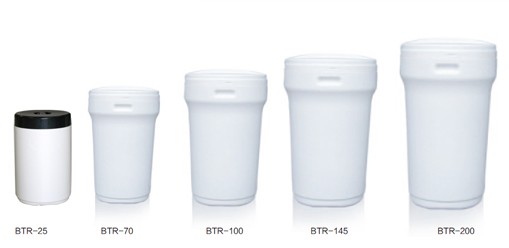

Model | BTR-25 | BTR-70 | BTR-100 | BTR-145 | BTR-200 |
Volume | 25L | 80L | 100L | 145L | 200L |
Brine Tank Size(D*H) | Φ285*440mm | Φ516*950mm | Φ400*815mm | Φ460*875mm | Φ585*1040mm |
Plastic Bag Packing(W*D*H) | 285*285*440mm | 535*535*1815mm | 405*405*1530mm | 460*460*1645mm | 615*615*2160mm |
Carton Box Packing(W*D*H) | 300*300*480mm | 555*555*1835mm | 425*425*1550mm | 480*480*1665mm | 615*615*2180mm |
Packing | 1 pcs/pack | 5 pcs/pack | 5 pcs/pack | 5 pcs/pack | 5 pcs/pack |
Standard Specification | Brine well | Brine well, grid | Brine well, grid | Brine well, grid | Brine well, grid |
Colour(optional) | Light grey White Black Blue Almond |
